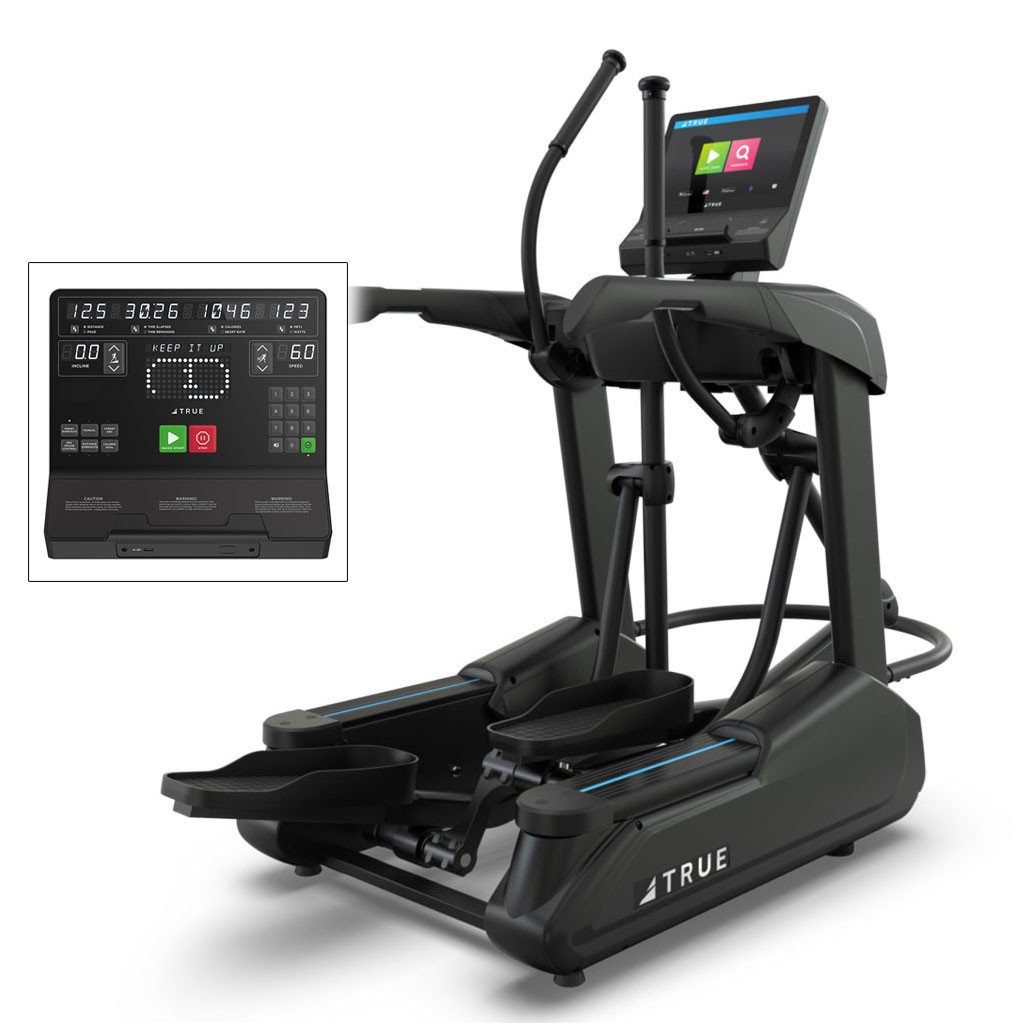

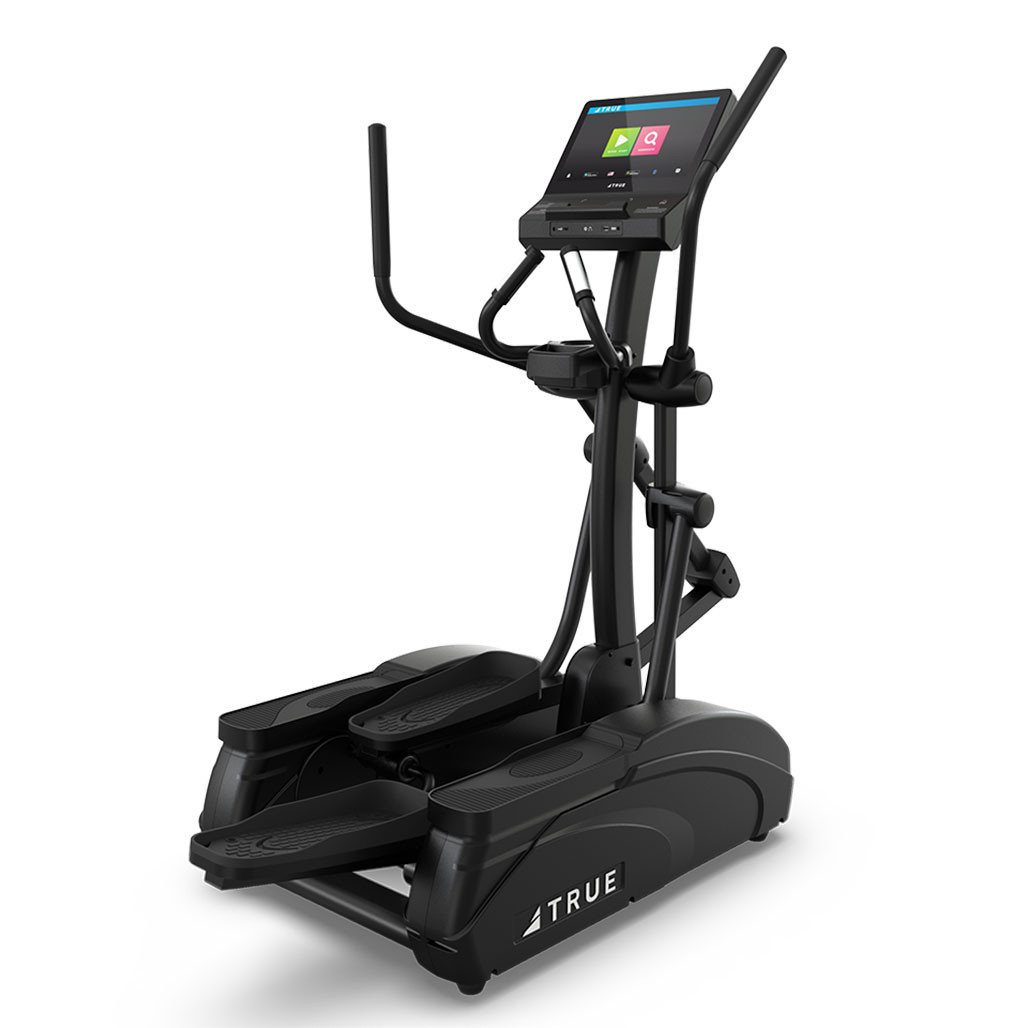

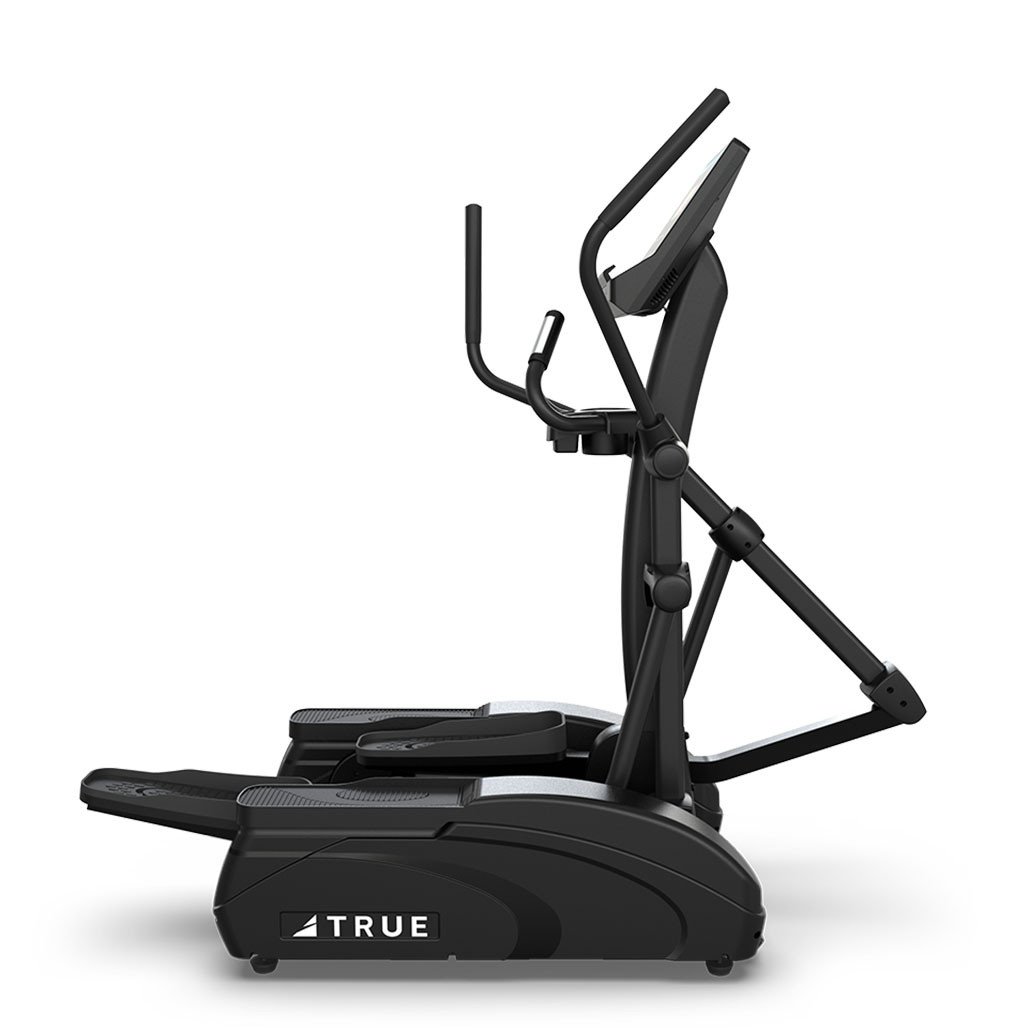

Perfect for facilities with light usage, the TRUE Launch Elliptical with Console is designed with our most compact frame.
- Self-Generating (LED console only)
- Core Drive® system
- Cardio 360™ programming
- Hybrid self-generating brake
- 21” stride length
- Includes Unite LED Console: User-friendly interface and enhanced functionality with a sleek and streamlined design.
- Console Upgrade options:
- Unite 10″ touchscreen: Vivid screen and improved performance and features, on a 10” scale.
- Unite 16″ touchscreen With advanced features, it’s the perfect companion for achieving fitness goals with style and efficiency.
- Note: Photos may show different consoles, you will receive the one that is selected from the Options.
Console Details

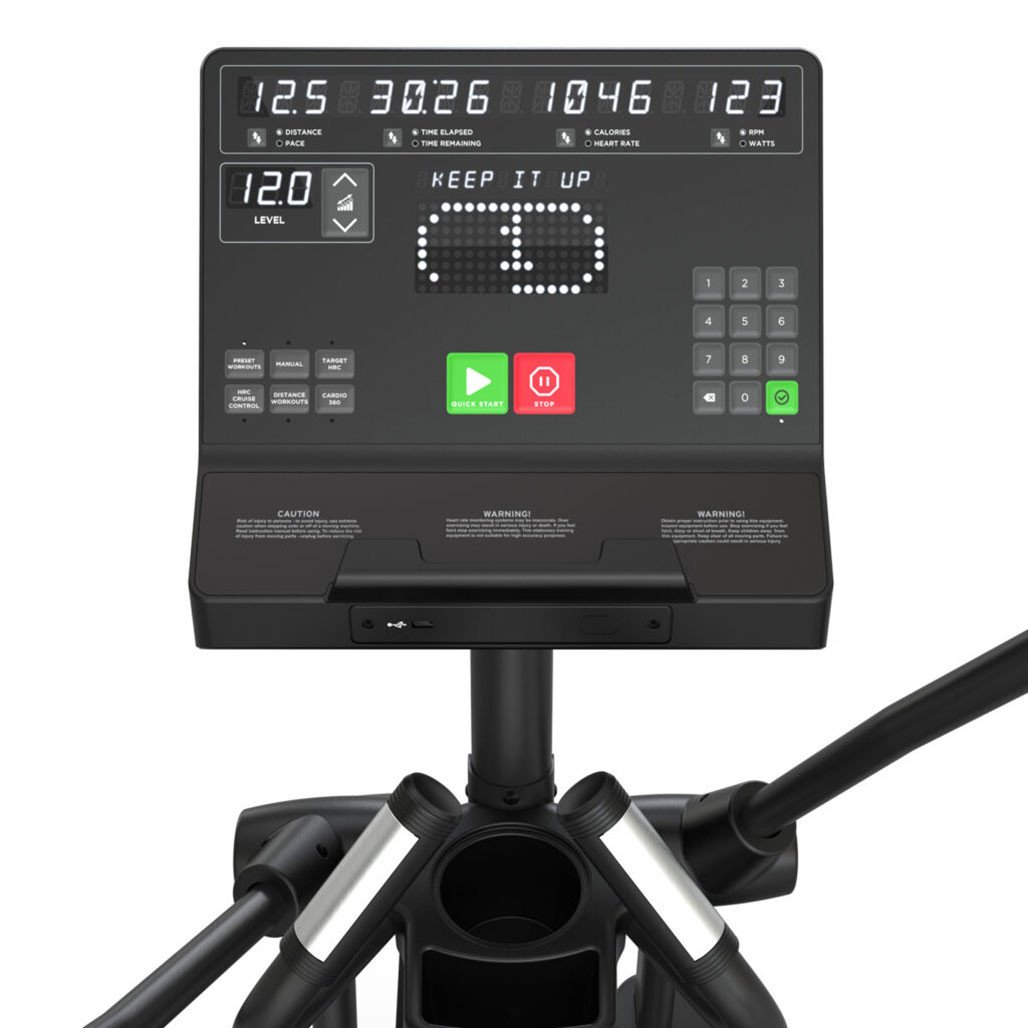

Unite LED Console
With a sleek and streamlined design, our all new Unite LED console offers an even more user-friendly interface and enhanced functionality, making it easier than ever for users to achieve their fitness goals. Featuring 8 dedicated data points, users have the flexibility to customize their workout experience by choosing which metrics they want to see.
- Large LED display with intuitive navigation
- 8 data points for detailed workout feedback
- Dedicated message center
- 10-key pin pad for easy set-up and data entry
- 19 to 32 workouts (dependent upon equipment type)
- Quick-access workout program keys
- Self-generated (dependent upon equipment type)
- EcoFit integration available

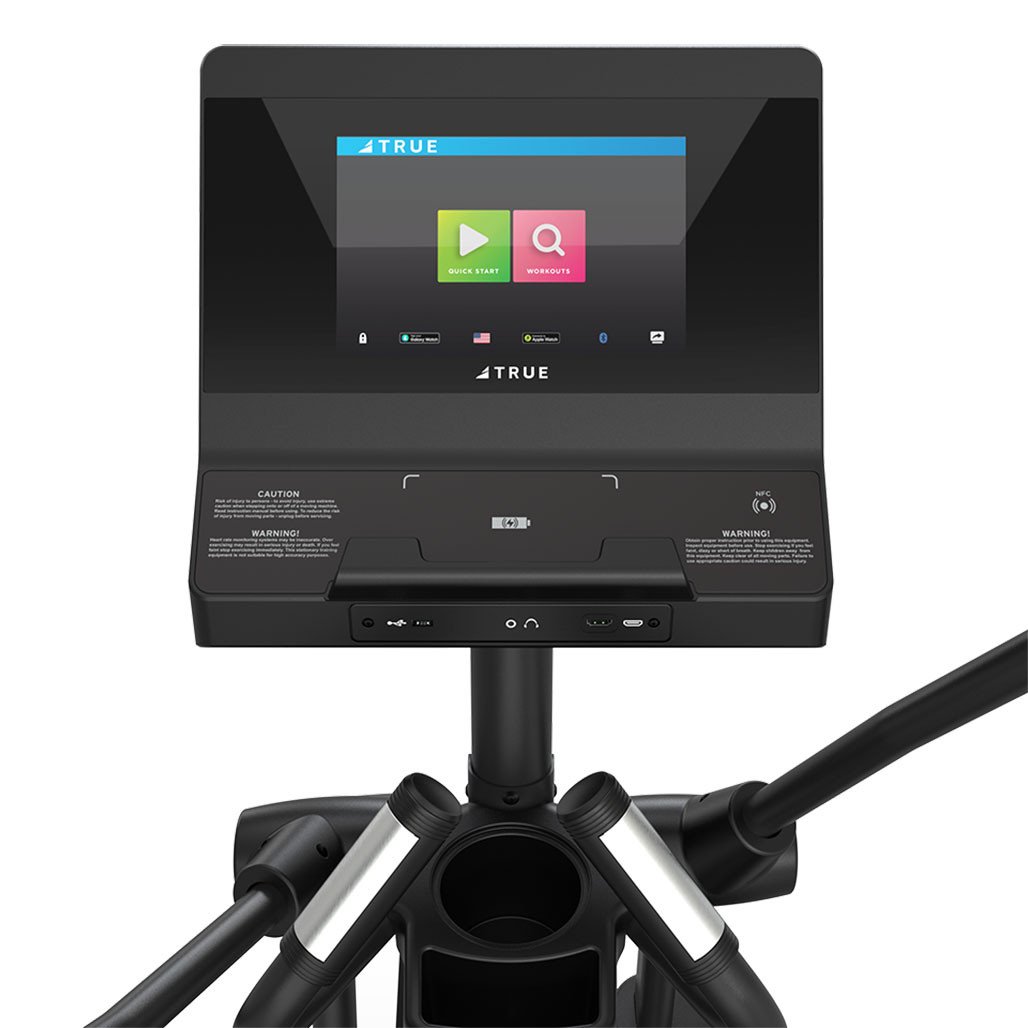

Unite 10″ Touchscreen, Optional Upgrade
The Unite 10” Touchscreen provides the same vivid screen and improved performance and features as the UNITE 16″, but on a smaller scale. The Unite 10″ Touchscreen Console boasts a cutting-edge user interface, enhanced speed and performance, easy integration with wearables, convenient wireless charging for mobile devices, and a wide selection of streaming entertainment choices.
- Vivid 10” screen with state-of-the-art UI
- Enhanced speed and performance
- Seamless connectivity to Apple Watch & Samsung Galaxy Watch wearables
- Wide selection of streaming and entertainment apps
- Bluetooth® connection to heart rate straps, headphones, and mobile devices
- Wi-Fi, ANT+, and NFC compatibility
- E-gym and EcoFit integration available

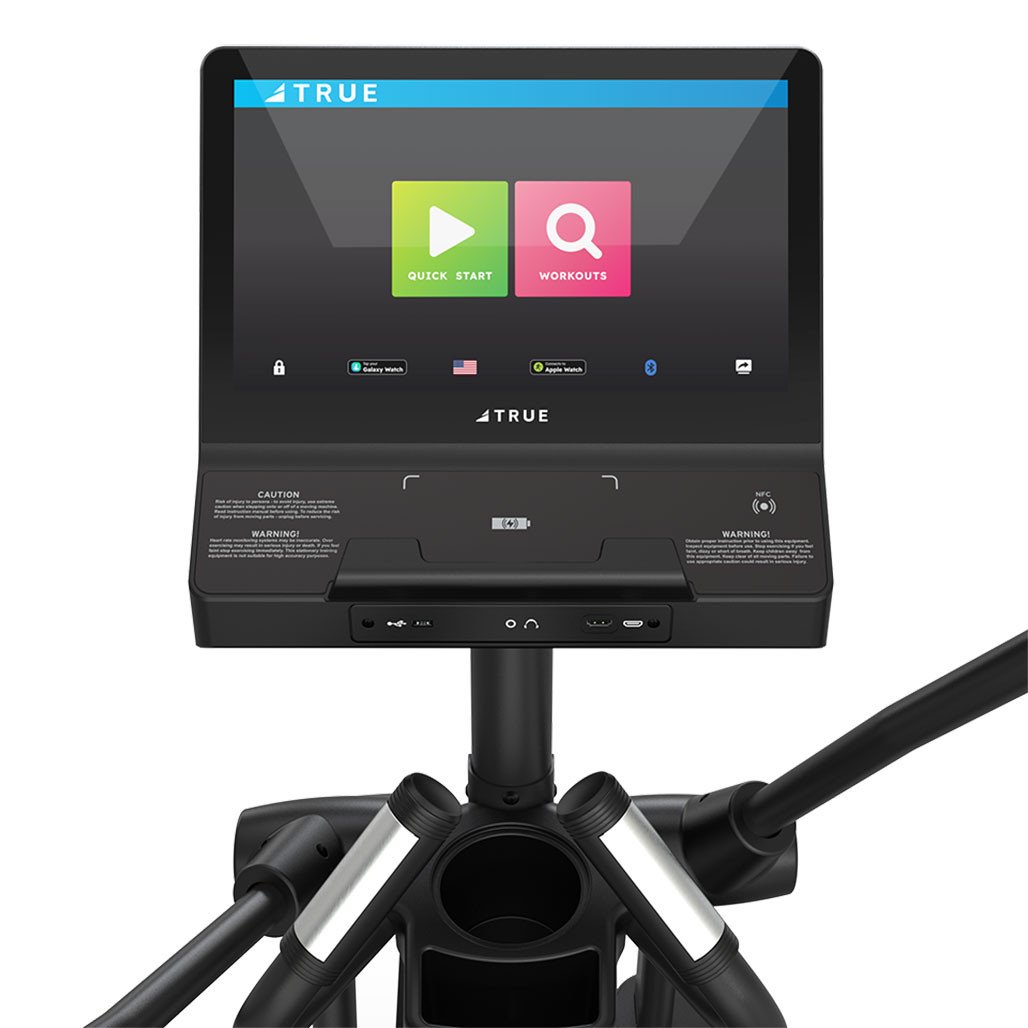

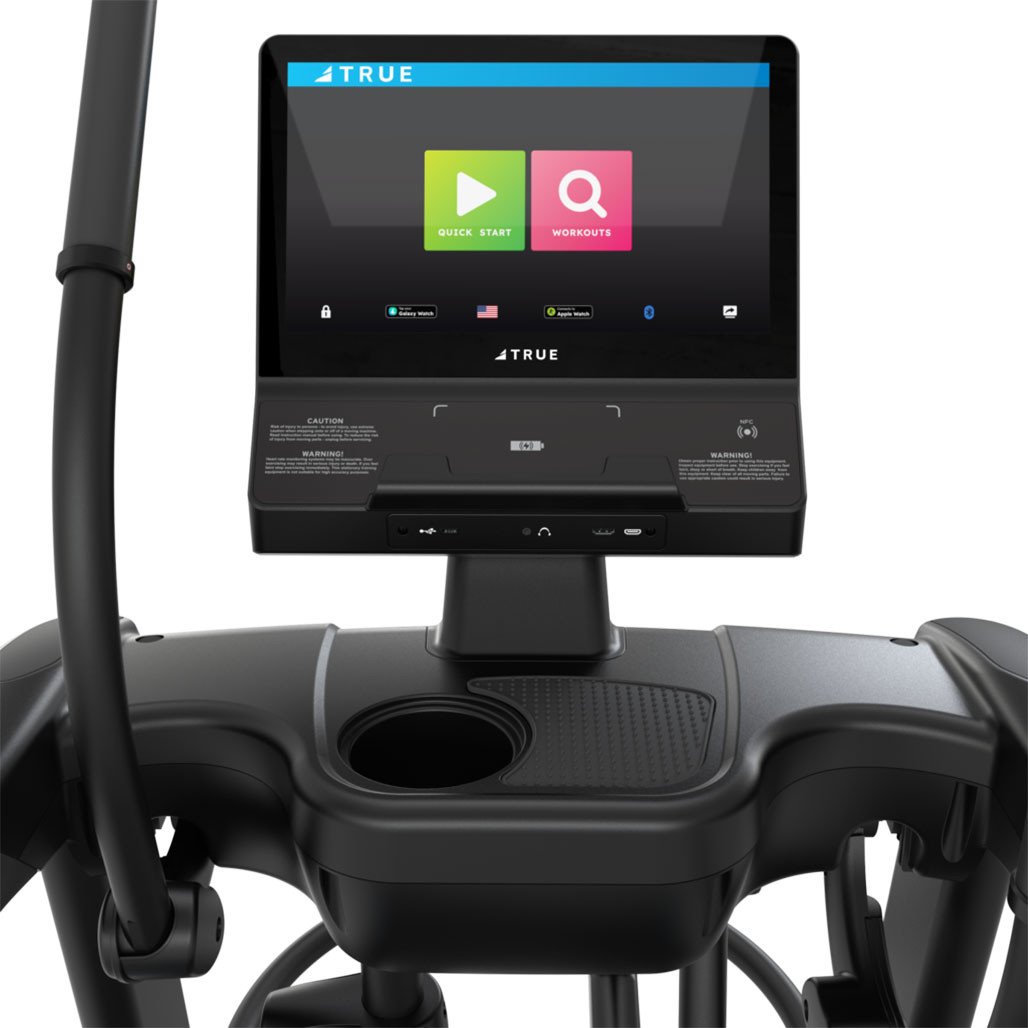

Unite 16″ Touchscreen, Optional Upgrade
Elevate your members’ fitness experience with the UNITE 16″ Touchscreen Cardio Console. The UNITE 16” features a vibrant screen with state-of-the-art UI, improved speed and performance, seamless connectivity to wearables, wireless charging functionality for mobile devices, and an array of streaming entertainment options. With its advanced features and intuitive design, it’s the perfect companion for achieving fitness goals with style and efficiency.
- Vibrant 16” screen with state-of-the-art UI
- Enhanced speed and performance
- Seamless connectivity to Apple Watch & Samsung Galaxy Watch wearables
- Wide selection of streaming and entertainment apps
- Bluetooth® connection to heart rate straps, headphones, and mobile devices
- Wi-Fi, ANT+, and NFC compatibility
- E-gym and EcoFit integration available
Technical Specifications
| Power Source | 120V/16A Dedicated (NEMA 5-20 Receptacle) 220-240V/8A Option Available |
|---|---|
| Cord Length | 12′ / 3.7M |
| Power Factor Correction (PFC) | Standard |
| Resistance Source | Double-Braking System |
| Incline Motor | 1,200 lbs. of thrust |
| Speed Sensor | Optical |
| Slat | 62 vulcanized rubber slats – durometer of 75 shore |
| End Rollers | 58 mm diameter with shielded bearings |
| Slatbelt Support Bearings | 22 mm diameter with sealed bearings |
| Frame Construction | Robotically Welded Heavy-Gauge Steel |
| Speed Range | 1 to 12.0 MPH / 1.6 to 19.3 KPH |
| Incline/Decline Range | 0% to 25% (-3% to 22% with Decline) |
| Quick Access Control | Mechanical thumb switches and center pod with quick keys (speed and incline) as well as emergency stop |
| Handrail Design | Extended Handrails with Molded Rubber, Moisture-Resistant Grips |
| Contact Heart Rate Monitoring | Yes |
| Wireless Heart Rate Monitoring | Polar® Compatible Bluetooth |
| User Detection | Person Present Detection |
| Console Options | Unite 16″, Unite 10″, and Unite LED |
| Unite 16″ and Unite 10″ Consoles | 10K, 5K, AIR FORCE, ARMY, CALORIE GOAL, CARDIO CHALLENGE, DISTANCE GOAL, DRAW YOUR OWN, GERKIN, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, MARINES, MONUMENT WORKOUT, NAVY, PEB, QUICK START, ROLLING HILLS, SINGLE HILL, SPEED INTERVALS, TARGET HRC, TIME GOAL, VIRTUAL RUNS, WEIGHT LOSS HILL |
| LED Console | 10K, 5K, CALORIE GOAL, CARDIO CHALLENGE, DISTANCE GOAL, GERKIN, HALF MARATHON, HILL INTERVALS, HRC CRUISE CONTROL, LEG SHAPER, QUICK START, ROLLING HILLS, SINGLE HILL, TARGET HRC, TIME GOAL, and WEIGHT LOSS HILL |
| Accessories | Water Bottle Holders, Accessory Tray, Reading Rack/Tablet Holder |
| Footprint | 72″ L x 35″ W x 64″ H / 182 cm x 89 cm x 163 cm |
| Running Surface | 22”/55 cm x 60”/152 cm |
| Machine Weight | 599 lbs / 271.7 kg |
| Shipping Weight | 649 lbs / 294.3 kg |
| Maximum User Weight | 500 lbs / 226.7 kg |
| Deck Step-Up Height | 13” / 33.02 cm |
| Portability | Rear Retractable |
